固体版制版机

固体版制版机

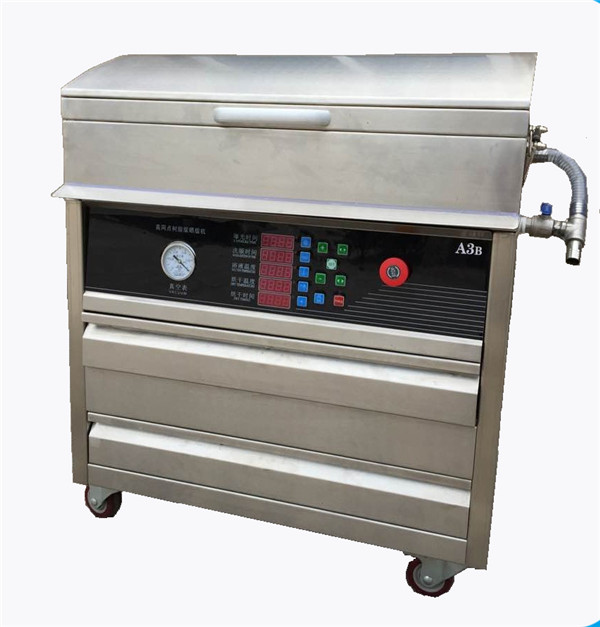

Water Washing Solid Resin Plate Making Machine

》产品介绍
YHG 固体树脂版制版机是我公司自行研制开发的高
品质固体树脂制版设备。该机制版精度高,性能优良,采
用电脑控制,使用方便。各项技术指标均达到国外先进机
型水平。

》性能特点
 曝光、洗版、烘干三合一自动机。
·采用原装进口飞利浦(PHILIPS)灯管。
·高速、稳定真空吸气、高强度超平抽气板。
·真实再现高网线图文(可制200线)。
·LED显示,电脑智能控制。
·版材自动粘贴,纯平高效洗刷。
·人性化设计,结构紧凑,外表美观,操作简便,制版时间短。

》规格型号及参数(特殊规格可定做)
Model and technical  specification (Special specifications can be customized):
(见表格)

Product Introduction:
YHG solid water washing solid resin plate making machine is a high quality solid resin plate making equipment developed by our company. The mechanism has the advantages of high precision and good performance. It is controlled by computer and is easy to use. All the technical indexes are up to foreign advanced machines
Type level.

Performance Characteristics :
·Exposure, washing, drying, three in one automatic machine.
·Use imported PHILPS (PHILIPS) lamp tube.
·high speed, stable vacuum suction, high strength superdrivegasboard.
·True reappearance high net line text (can make 200 lines).
·LED display, computer intelligent control.
·self-adhesive plates, flat efficient scrubbing.
·Humanized design, compact structure, beautiful appearance, easy operation, short plate making time.

机型 Model YHG-570型
印版厚度 Plate Thickness 0.53-1.14 mm
******印版规格 Max.Size 500×700mm
电源 Power Supply AC200V 50/60Hz60A
电源功率  Power 2.4kw
净重 Net Weight 180kg
外形尺寸 Outline Dimension 1060×940×780mm
