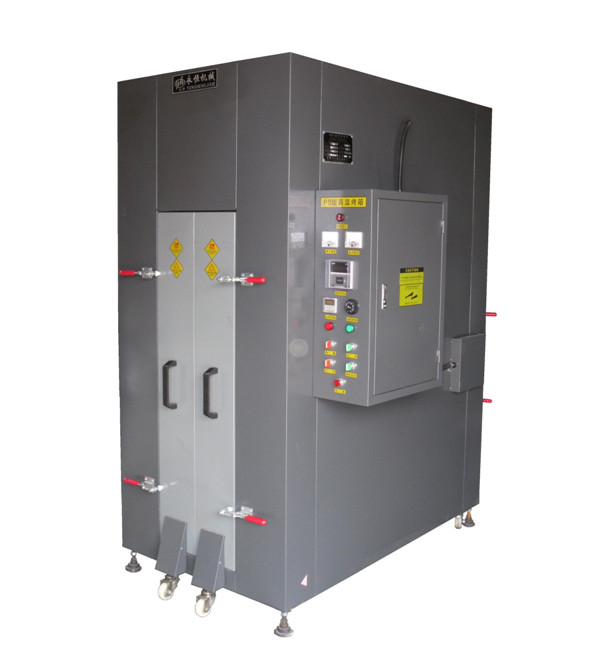

KYHL型立式高温烤版机

KYHL型立式高温烤版机
KYHL Vertical High Temperature Plate Baking Machine

》产品介绍
 KYHL型立式烤版机(高温烤箱)是专门用于烘烤传统PS版和CTP热敏版,以增加版材的耐印量。经过烘烤的PS版印数可增加3-5倍。微电脑升温控制,精确的温控系统和优良的隔热系统。

》性能特点
微电脑升温控制,精确的温控系统和优良的隔热系统。
全密闭式热风循环,烤版温度稳定,热量分布均匀,避免版材变形。
两个独立温控系统避免单个故障而无法工作,保证作业进度。
直立版双抽版架,减少高温外泄,节省电力消耗。
外置风循环转动装置,延长使用寿命。
精巧的夹版装置,方便版材取放。
自动计时报警装置,免去人工计时误差,确保烤版质量。

》规格型号及参数(特殊规格可定做)
Model and technical  specification (Special specifications can be customized):
(见表格)

Product Introduction:
KYHL Standing PS Plate whirl machine (High Temperature Oven) is special for roasting traditional PS plate and CTp tem-perature sensing plate, to improve the printing quantity of the material, the printing quantity of the roasted PS plate could increase 3-5 times. Microcomputer temperature control, precise temperature control system and excellent heat insulation system.

Performance Characteristics :
· Microcomputer temperature control, precise temperature control system and excellent heat insulation system.
·Fully closed hot air circulation, the temperature of the baking plate is stable, the heat distribution is uniform, and the plate deformation is avoided.
·Two separate temperature control system
 could avoid the stopping for the single fault,to ensure the progress of the work.
·Vertical plate double suction plate frame, reduce high temperature leakage, save power consumption.
·

Timing starting/shutting equipment, whole sealing machine case design, avoiding the hot gas running out.

·Fine plate locking equipment, the plate can be taken out conveniently.
·

Automatic alarm when the roasting is over, accurate temperature control, fine heat insulation system, plates do
not bend.

机型 ModelKYHL-880型KYHL-1400型
烤版时间 Baking Time6-8 min6-8 min
最大烤版规格 Max.Size1100×880mm1100×1400mm
最大烤版量 Max.Quantity8张
温控范围 Baking Temperature20-250℃
电源 Power SupplyAC380V 50/60Hz60A
加热功率 Heating Power15kw18kw
净重 Net Weight520kg620kg
外形尺寸 Outline Dimension1280×800×1720mm1780×800×1720mm
